JCK High Frequency Electrodeless Lamp Product Overview

1.High Frequency Electrodeless Lamp Product Overview

High-frequency electromagnetic energy to induction into the way of coupling light bulb, the light bulb so that the inert gas ionization avalanche formation of plasma, plasma excited atoms return to the ground state when a spontaneous emission of 254nm ultraviolet light, wall lamp phosphors excited by ultraviolet and visible light to issue. As early as 90 years ago, Thompson Americans, such as Tai Sile who invented the green light The Promise, by the age of scientific and technological level of restrictions until the 1990s, due to the rapid development of new technology, electronic components, as well as to increase the power density The corresponding size of the greatly reduced, so that only non-polar green light to enter the field of commodities.

Now known as the 21st century "energy revolution" in the field of a rookie Jin Chang-kun of the non-polar light green card, with its high-energy, long life, high efficiency, high color, no strobe, environmental protection really can start immediately without fear of repercussions, Less maintenance, and into our daily lives, and is widely used in the path of the street, beacon light, large-scale factories, stores, recreation centers, tunnels, cast light, floodlights, underwater lights, explosion-proof lights, mining, office and School classroom with lights.

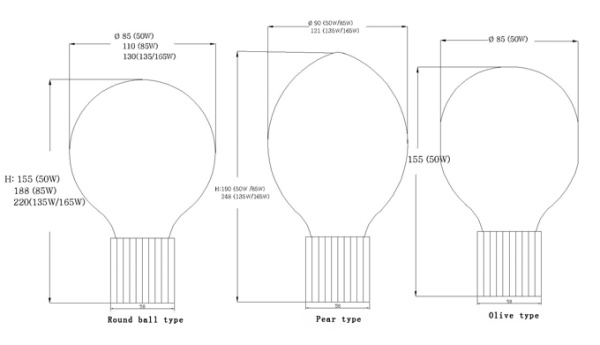

2、The size of JinChangKun abio-Dia

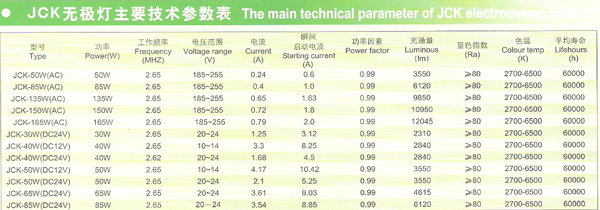

3.High Frequency Electrodeless lamp main technical parameters

4.Size of High Frequency ballast

5.

型号
Type

输入功率(W)
Input Power

电压范围(V)
Input Voltage

功率因数
Circuit Power
Factor

工作温度(℃)
Ambient Temp

JCK-50AC

50

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-85AC

85

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-135AC

135

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-165AC

165

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-50AC

50

24

≥0.99

-35⁰ ～ +60⁰

JCK-85AC

85

24-48

≥0.99

--35⁰ ～ +60⁰

型号
Type

输入功率(W)
Input Power

电压范围(V)
Input Voltage

功率因数
Circuit Power
Factor

工作温度(℃)
Ambient Temp

JCK-50AC

50

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-85AC

85

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-135AC

135

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-165AC

165

160-265

≥0.99

-35⁰ ～ +60⁰

JCK-50AC

50

24

≥0.99

-35⁰ ～ +60⁰

JCK-85AC

85

24-48

≥0.99

--35⁰ ～ +60⁰
High-frequency device of the main technical parameters

Product Caution:

• High Frequency Ballast and the company must produce the same power high-frequency electrodeless discharge lamp supporting use.

• High Frequency Ballast when the ambient temperature should not exceed 60 ℃.

• High-frequency electrodeless discharge lamps and High Frequency Ballast must properly connected prior to turning on power.

• High Frequency Ballast output voltage of about 1KV, in the workplace is prohibited under the state of touch
